Understanding App Bar and Command Bar in UWP

by Santhakumar Munuswamy

  Posted on  24 June 2016

  UWP




In this article we will discuss how we can understand the App Bar and Command Bar in UWP.  We can easily implement App Bar and Command Bar with a sample app in UWP. As you all know AppBar, Command Bar is a defualt classes on Windows.UI.Xaml.Controls package in Windows Runtime APIs. We can use the AppBar only when you are developing universal windows 8 apps in Windows 8. If you are going to develop new apps in Windows 10. It is highly recommend using the CommandBar control instead of AppBar in UWP.

Universal Windows Platform series

Background

CommandBar is a UI component and its lightweight control that can used in complex content such as images or text blocks as well as simplecommend such as AppBarButton, AppBarToggleButton and AppBarSeparator controls. It can be used with any navigation pattern and main three properties such as PrimaryCommands, SecondaryCommands and Content.

How to implement AppBar and CommandBar and run UWP App

We are going to discuss how to implement AppBar and CommadBar with a sample apps on UWP and show the demo in  multiple  device. We will see the step by step guidelines for the UWP AppBar and CommandBar app creation here.

Step 1:

Open Visual Studio 2015. Go to file menu, point to new and then click new project. New Project window will open,

you can select a installed template like “ Universal” under the Windows on Visual C# Template, and then

select a Blank App (Universal Windows) and type Project Name UWPCommandBar. Choose the project location

path and then click on the OK button.

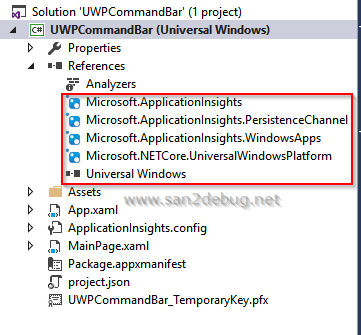

Now, you can see the UWPCommandBar project structure as in the following screen shot.



Step 2:

As you all know, we have discussed project folder structure and files on my previous article at earlier.

Step 3:

As you all know, we have toolbox available on visual studio in that which is available on CommandBar

control in the below screen shots



Now, you can see the auto generated code as below

<Page.BottomAppBar>

        <CommandBar>

            <CommandBar.Content>

                <Grid/>

            </CommandBar.Content>

            <AppBarButton Icon="Accept" Label="appbarbutton"/>

            <AppBarButton Icon="Cancel" Label="appbarbutton"/>

        </CommandBar>

 </Page.BottomAppBar>



Home.xaml

<Page

    x:Class="UWPCommandBar.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:local="using:UWPCommandBar"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d">

    <Page.BottomAppBar>

        <CommandBar ClosedDisplayMode="Compact">

            <CommandBar.PrimaryCommands>

                <AppBarButton Name="home" Icon="Home" Label="Home" Click="AppHome_Click"/>

                <AppBarButton Name="admin" Icon="Admin" Label="Admin" Click="AppAdmin_Click"/>

                <AppBarButton Name="contact" Icon="Contact" Label="Contact" Click="AppContact_Click"/>

            </CommandBar.PrimaryCommands>

            <CommandBar.SecondaryCommands>

                <AppBarButton Name="setting" Icon="Setting" Label="Setting"/>

            </CommandBar.SecondaryCommands>

        </CommandBar>

    </Page.BottomAppBar>

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

        <StackPanel>

            <TextBlock Text="Home" Padding="25 25 25 25"></TextBlock>

        </StackPanel>

    </Grid>

</Page>



Home.xaml.cs

using System;

using Windows.UI.Xaml;

using Windows.UI.Xaml.Controls;

// The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=402352&clcid=0x409

namespace UWPCommandBar

{

    /// <summary>

    /// An empty page that can be used on its own or navigated to within a Frame.

    /// </summary>

    public sealed partial class MainPage : Page

    {

        public MainPage()

        {

            this.InitializeComponent();

        }

        private void AppHome_Click(object sender, RoutedEventArgs e)

        {

            Frame.Navigate(typeof(MainPage));

        }

        private void AppAdmin_Click(object sender, RoutedEventArgs e)

        {

            Frame.Navigate(typeof(About));

        }

        private void AppContact_Click(object sender, RoutedEventArgs e)

        {

            Frame.Navigate(typeof(Contact));

        }

    }

}



Step 4:

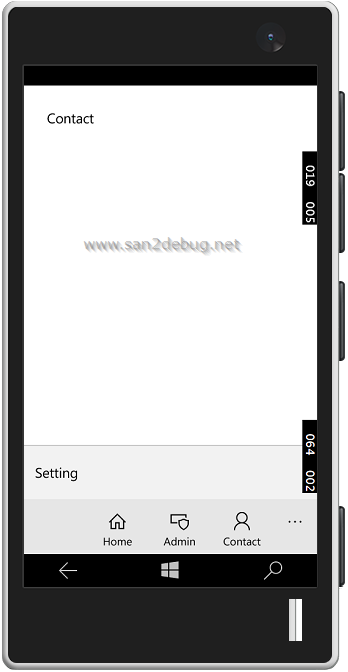

Now, if you can run the UWPCommandBar Apps with the different devices, you can see how

an apps looks, as shown below:

Select a Debug and Mobile Emulator 10.0.10586.0 WVGA4 inch 512 MB option to run the apps













































How to Customize the CommendBar in UWP

We can easily customize the UI/UX based on your requirements in UWP. I have used in

AppBarSeparator for the UI looks pretty in the sample universal windows apps.

Step 1:

<Page.TopAppBar>

        <CommandBar ClosedDisplayMode="Minimal" Background="#1FA2E1"></CommandBar>

    </Page.TopAppBar>

    <Page.BottomAppBar>

        <CommandBar ClosedDisplayMode="Compact" Background="#1FA2E1">

            <CommandBar.PrimaryCommands>

                <AppBarButton Name="home" Icon="Home" Label="Home" Click="AppHome_Click"/>

                <AppBarSeparator/>

                <AppBarButton Name="admin" Icon="Admin" Label="Admin" Click="AppAdmin_Click"/>

                <AppBarSeparator/>

                <AppBarButton Name="contact" Icon="Contact" Label="Contact" Click="AppContact_Click"/>

                <AppBarSeparator/>

            </CommandBar.PrimaryCommands>

            <CommandBar.SecondaryCommands>

                <AppBarButton Name="setting" Icon="Setting" Label="Setting"/>

            </CommandBar.SecondaryCommands>

        </CommandBar>

    </Page.BottomAppBar>



Step 2:

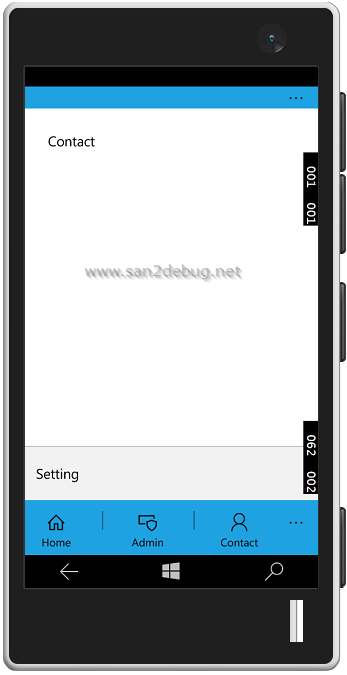

Now, if you can run the UWPCommandBar Apps with the different devicesyou can see how an apps looks, as shown below:
Select a Debug and Mobile Emulator 10.0.10586.0 WVGA4 inch 512 MB option to run the apps

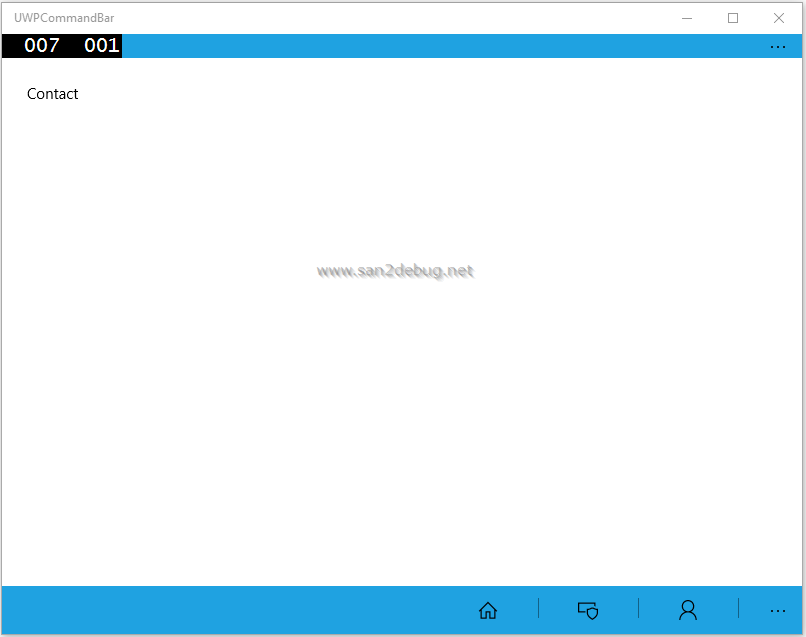

Select a Debug and Local Machine option to run the apps

Source Code

you can download the source code to here

Conclusion

I hope you understood the CommendBar, AppBar, Customize UI and run it on multiple devices. I have covered

all the required things. If you find anything that I missed in this article, please let me know. Please share your

valuable feedback or suggestions.
